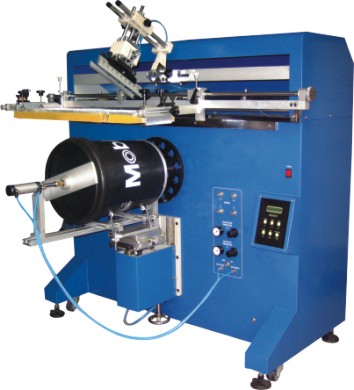

Semi Automatic Screen Printing Machine For Cylindrical Buckets

  • 1
  • 2
  • 3

Brand Name : Senny

Model Number : SA1000

Certification : CE SGS

Place of Origin : China

MOQ : 1PC

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100PCS/YEAR

Delivery Time : One Month

Packaging Details : Plywood package

Plate Type : Screen Printing Machine

Condition : New

Printing Durability : High Durability

Automatic Grade : Semi-automatic

Warranty : 1 Year

After-Sales Service : Video Or On-line

Contact Now

Multi-Purpose Semi Automatic Screen Printing Machine For Cylindrical Buckets Max Printing Area Is 900X250mm

SA400-1000.pdf

Application Scope:

SA1000 is designed for printing on cylindrical containers. The printing area is very large (container diameter Φ20-Φ300mm). The important parts of the machine are all imported brand-name products. Thanks to the left and right sliding reinforced structure design, squeegee and optional multifunctional printing operation, the machine runs stably and colors accurately.

Technical Characteristics:

1. Microcomputer control each function action, high degree of automation, simple and convenient operation.

2. Built-in 4-digit automatic counter and reset function.

3. The machine has 9 speeds to choose from, which can meet different printing requirements.

4. With container filling and pressure adjustment function.

5 Squeegee pressure is adjustable, and squeegee parts have X, y, Z and Z-R direction and angle fine adjustment function.

6 Table and frame components with X, y, Z and xy-r directional and angular adjustment functions.

Technical Specifications:

According to printing area's size, we have below different machines:

Mode SA250 SA400 SA700 SA1000
Max. printing area 200X250mm 350X250mm 600X250mm 900X250mm
Max.screen frame size 450X400mm 550X400mm 850X400mm 1200X400mm
Max.printing diameter Φ100mm Φ120mm Φ200mm Φ300mm
Max.printing speed up to 1000pcs/hr up to 1000pcs/hr up to 800pcs/hr up to 600pcs/hr

Specific technical points for SA1000

Power supply voltage 220V, 50HZ
Power consumption 50W
Air supply pressure 4-6 kg/cm2
Machine weight 250kg
Dimensions L1450×B1150×H1300mm

Semi Automatic Screen Printing Machine For Cylindrical Buckets

Factory Gate

Semi Automatic Screen Printing Machine For Cylindrical Buckets
